xsetroot, xterm e twm não são encontrados ao iniciar o XRDP / Xvnc (no Cent OS)

5

Estou tentando instalar o xrdp service em um servidor VPS e, embora todos instalados com êxito, recebo o seguinte erro após a conexão por meio do serviço Windows MSTSC.

A seguir estão os recursos que usei para instalar = > (1) (2) (3) (4) (6)

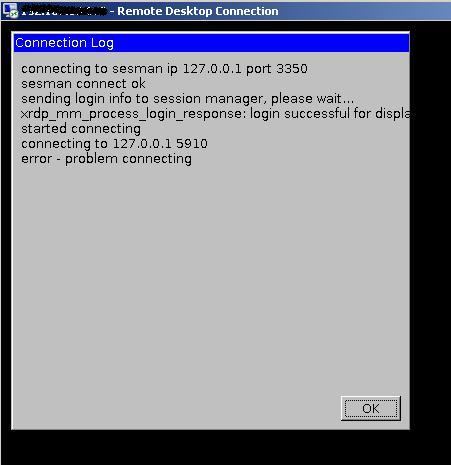

Imagine isso como uma janela da GUI - > Exemplo

Connection Log
    connecting to sesman ip 127.0.0.1 port 3350
    sesman connect ok
    sending login info to session manager, please wait ...
    xrdp_mm_process_login_response: login successful for display
    started connecting
    connecting to 127.0.0.1 5911
    error - problem connecting

e a seguir está o log de erros que vejo em /var/log/xrdp-sesman.log

[20140328-19:50:31] [INFO ] scp thread on sck 7 started successfully
[20140328-19:50:32] [INFO ] ++ created session (access granted): username root, ip my.ip.addr.ess:63327 - socket: 7
[20140328-19:50:32] [INFO ] starting Xvnc session...
[20140328-19:50:32] [INFO ] starting xrdp-sessvc - xpid=7552 - wmpid=7551
[20140328-19:50:32] [INFO ] ++ terminated session:  username root, display :11.0, session_pid 7549, ip my.ip.addr.ess:63327 - socket: 7

e seguintes são os logs do meu /root/.vnc/servername:2.log

Xvnc TigerVNC 1.1.0 - built Feb  4 2014 05:26:31
Copyright (C) 1999-2011 TigerVNC Team and many others (see README.txt)
See http://www.tigervnc.org for information on TigerVNC.
Underlying X server release 11300000, The X.Org Foundation

Initializing built-in extension Generic Event Extension
Initializing built-in extension SHAPE
Initializing built-in extension MIT-SHM
Initializing built-in extension XInputExtension
Initializing built-in extension XTEST
Initializing built-in extension BIG-REQUESTS
Initializing built-in extension SYNC
Initializing built-in extension XKEYBOARD
Initializing built-in extension XC-MISC
Initializing built-in extension XFIXES
Initializing built-in extension RENDER
Initializing built-in extension RANDR
Initializing built-in extension DAMAGE
Initializing built-in extension MIT-SCREEN-SAVER
Initializing built-in extension DOUBLE-BUFFER
Initializing built-in extension RECORD
Initializing built-in extension DPMS
Initializing built-in extension X-Resource
Initializing built-in extension XVideo
Initializing built-in extension XVideo-MotionCompensation
Initializing built-in extension VNC
Initializing built-in extension GLX

Fri Mar 28 19:36:33 2014
 vncext:      VNC extension running!
 vncext:      Listening for VNC connections on all interface(s), port 5902
 vncext:      created VNC server for screen 0
/root/.vnc/xstartup: line 27: xsetroot: command not found
/root/.vnc/xstartup: line 28: xterm: command not found
/root/.vnc/xstartup: line 29: twm: command not found

E a seguir estão os comandos que usei para instalar tigervnc-server e xrdp nos meus dois sistemas operacionais.

root@servername [~]#  cat /etc/*-release
CentOS release 6.5 (Final)
CentOS release 6.5 (Final)
CentOS release 6.5 (Final)
root@servername [~]# yum install xrdp tigervnc-server
root@servername [~]# service vncserver start
Starting VNC server: no displays configured                [FAILED]
root@servername [~]#
root@servername [~]#  vim /etc/sysconfig/vncservers
VNCSERVERS="2:root"
VNCSERVERARGS[2]="-geometry 800x600 -nolisten tcp -localhost"
:wq!
root@servername [~]# service vncserver start
Starting VNC server: 2:root
New 'servername:2 (root)' desktop is servername:2

Starting applications specified in /root/.vnc/xstartup
Log file is /root/.vnc/servername:2.log

                                                           [  OK  ]
root@servername [~]# service xrdp start
Starting xrdp:                                             [  OK  ]
Starting xrdp-sesman:                                      [  OK  ]
root@servername [~]# chkconfig xrdp on
root@servername [~]# chkconfig vncserver on
root@servername [~]# vncpasswd
Password:
Verify:
root@servername [~]#

por Abhishek Madhani 28.03.2014 / 21:17

2 respostas

5

Parece que você precisa instalar o X. Seu log do servidor VNC diz que arquivo não foi encontrado para xsetroot, xterm e twm.

Veja aqui: link


por 28.03.2014 / 21:35
0

Em uma instalação do CentOS com Área de Trabalho ou Área de Trabalho Mínima. Vá em frente e instale o repositório epel. Então

yum install tiger* xrdp rdesktop
service xrdp restart
chkconfig xrdp on

Então você será capaz de RDP de ou para este PC / Servidor


por 12.05.2014 / 15:35
